全塑过滤器（UPVC壳体）

8芯&9芯精密过滤器

8芯&9芯精密过滤器

本产品获得国家实用新型专利证书，专利号为:ZL 201821245100.0

获得国家发明专利证书，专利号为:200510049195X

已通过0-0.6Mpa打10万次循环疲劳测试。

It has got the utility model patent,which is issued by the state intellectual property office of the P.R.C. The patent NO is: ZL201821245100.0

It has got the patent of invention. The patent NO is: 200510049495.X

It has achieved 0-0.6 MPa 100,000 times recycle fatigue test sccessfully.

Note:

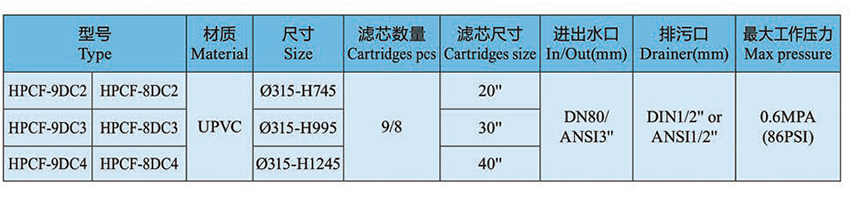

桶体内安装各种材质各种精度的内径为28-30mm:外径为60-70mm的两端平压式滤芯 (或标准222接头滤芯) 9根或8根。

最高工作温度: 45℃,顶盖上预留的排气阀及压力表安装孔的螺纹尺寸为: G1/4" ， 配公制压力表需要订购转接头。

It can install all material; all precision's cartridge 9 PCS or 8 PCS, which I.D. is 28-30mm, O.D. is 60-70mm.

The highest working temperature is 45℃, The size of the two holes in the lid of the filter is G1/4". If the thread of the pressure gauge is metric standard, should add an adaptor.

{dede:field.title/}

产品优势/Product Merits

  • 1、过滤器采用UPVC材质，部件一次成型， 标准化生产，更换、维修方便。
  • 2、过滤器进出水口在同一水平直线，连接有3” 的由令接头， 视觉美观、整齐。
  • 3、过滤器布水采用从过滤器底部中心往上向四周均匀布水，滤芯受冲击阻力小;顶部装有排气阀，便于过滤器中空气排出。
  • 4、过滤器底部系统与顶部滤芯定位压紧板均采用一体式设计，滤芯的安装并压紧既容易又可避免内漏现象。
  • 5、过滤器封盖与本体连接采用吊环螺丝法兰式密封，既确保过滤器完好的密封性能，又给更换滤芯的拆装带来了方便和快捷且使过滤器能承受更大压力。
  • 6、过滤器为UPVC材质成型，具有较强的耐腐蚀性， 能用于不锈钢不能代替的化工行业，更能体现它的经济价值和实用价值。
  • 1.All the parts of this series filters are made of UPVC material.
  • 2.The inlet and outlet are in the same line, which connected with the pipe is adopt a 3”union.
  • 3.The distribution system of HPCF filters is distributed from bottom to top. Water is well-proportioned with small strike to cartridges and air is easy to be discharged.
  • 4.The bottom system of HPCF filter is designed together as a whole with the top localizer & closure system.Cartridges are easy to be installed, push down and closed, preventing leaking inside.
  • 5.The lid and the body are connected using eyebolts flange method, Ensure a good seal performance.and ensure the filter can stand higher pressure.
  • 6.HPCF filter is corrosion resistant, It can be used in SS-none-replace field.
